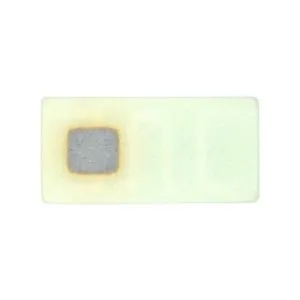

Bandpass Filter

Product Features

- Strong high-frequency adaptability: The center frequency covers the 2.4GHz core frequency band, the passband width accurately matches the wireless communication requirements, the characteristic impedance is 50 Ω, and it is compatible with the standard impedance design of RF systems.

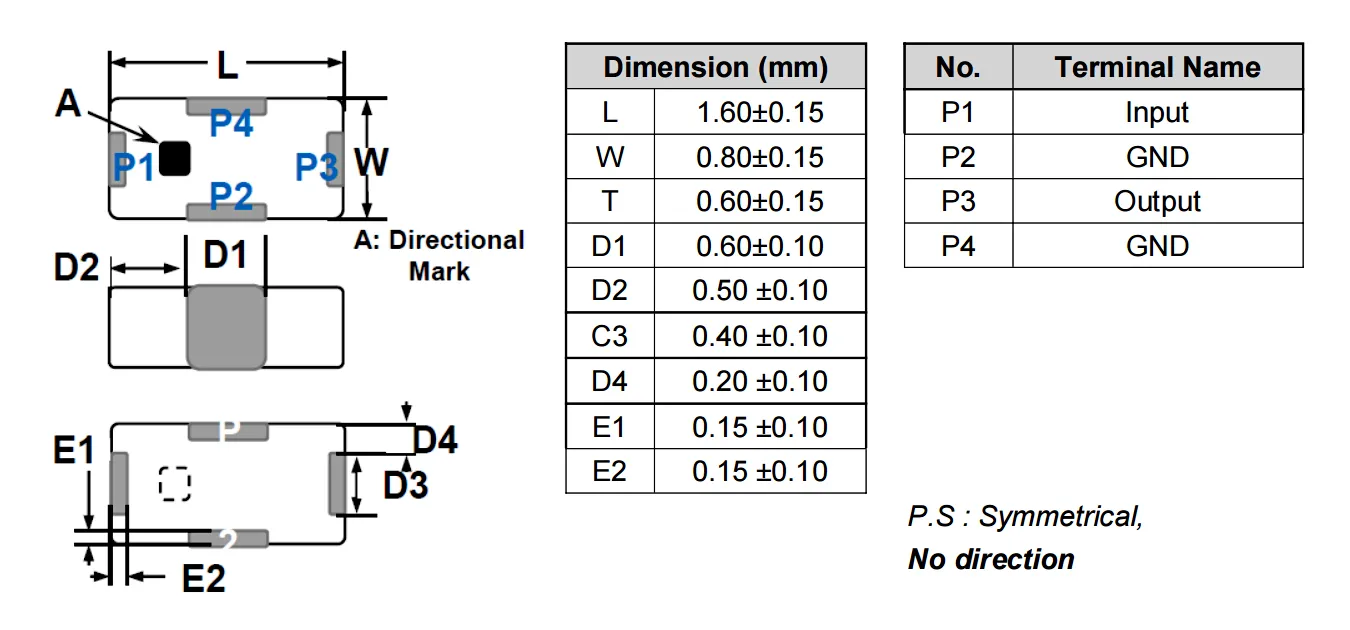

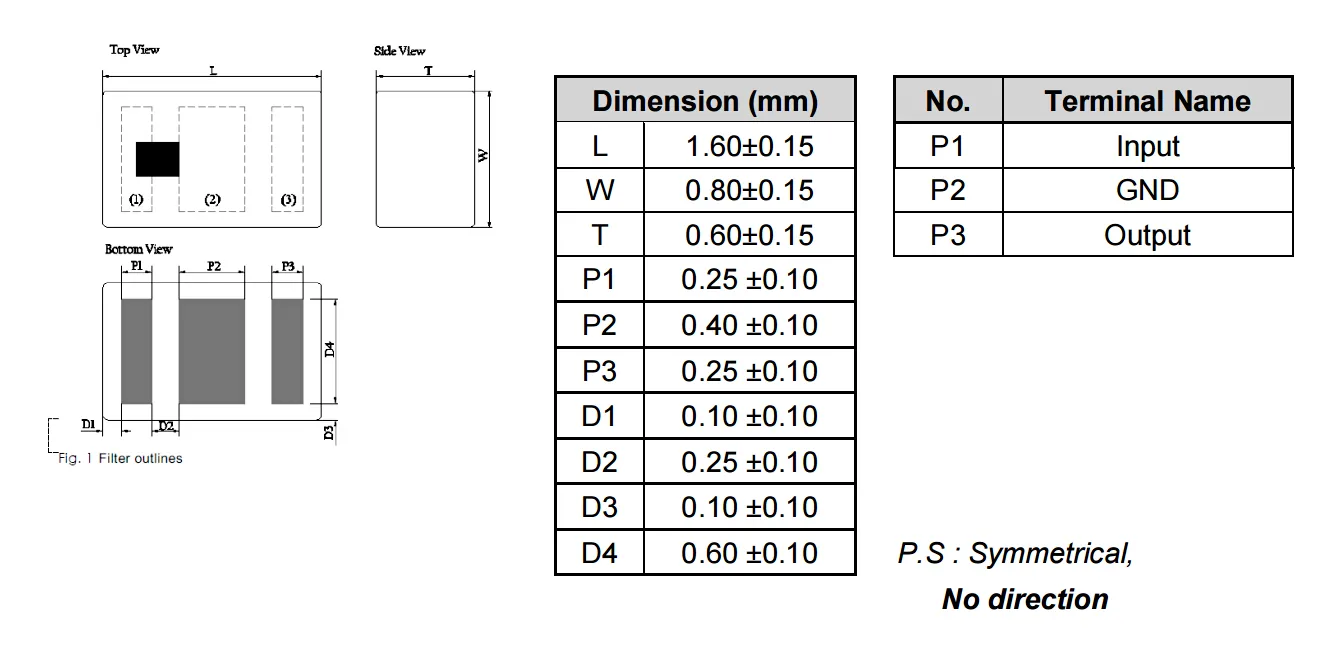

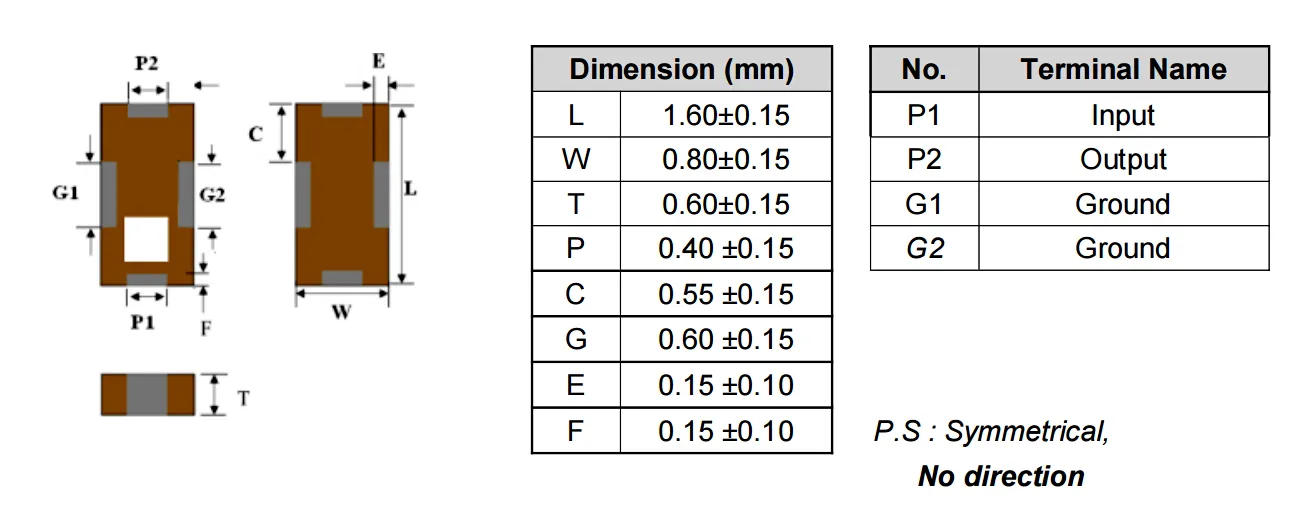

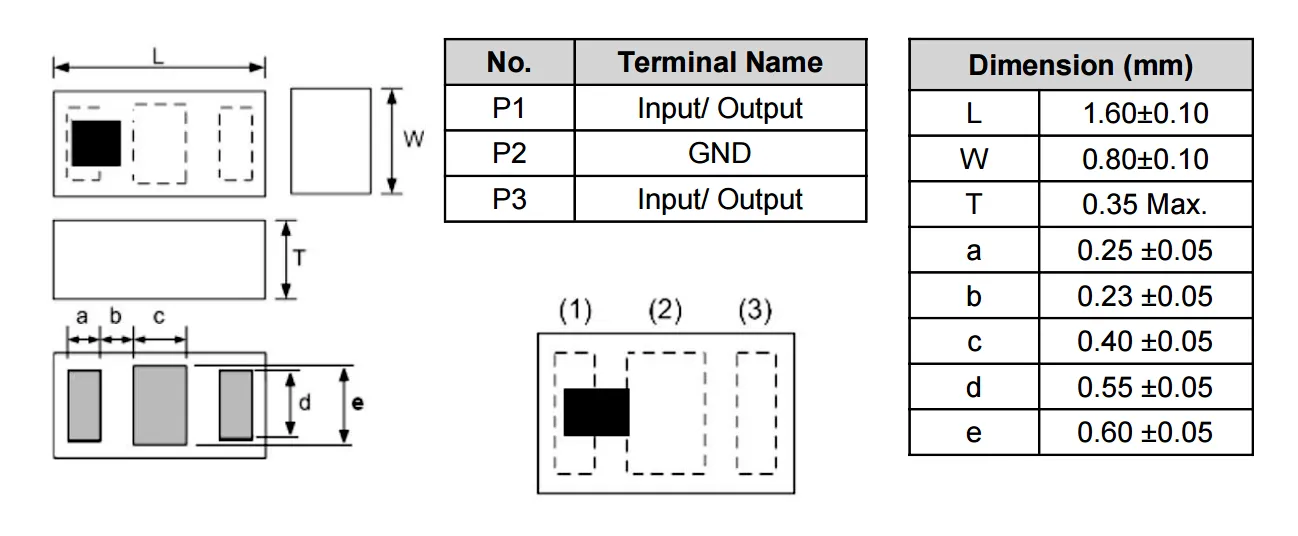

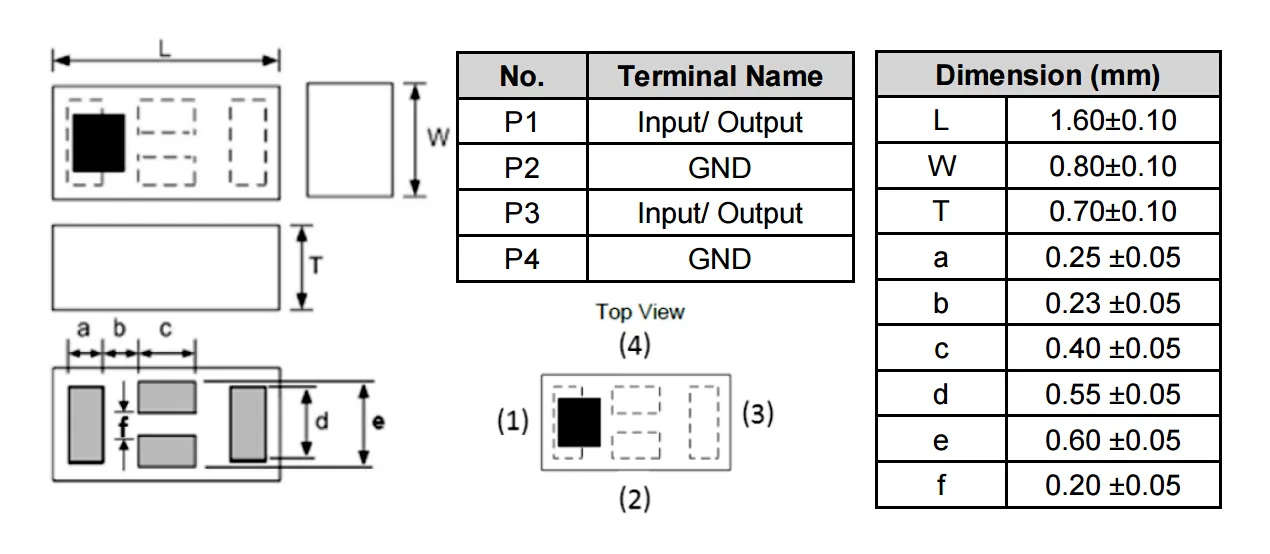

- Miniaturization integration: Adopting 1608 (1.6 × 0.8mm) surface mount packaging, thin thickness, Adopt to PCB dense layout, supporting tape packaging and automatic surface mount welding.
- Stable performance: Designed with low insertion loss and excellent out of band suppression capability, it can effectively filter out clutter signals; Operating temperature range -40~+85 ℃, meeting the requirements of consumer electronics and industrial environments.
- High reliability: Adopting multi-layer ceramic or thin-film process, robust structure, good batch consistency, RoHS compliant.

Typical Applications

- Consumer electronics: Wi Fi/Bluetooth modules for smartphones and tablets, wireless communication units for smartwatches.
- IoT devices: smart home sensors, wireless gateways, achieving precise transmission and reception of 2.4GHz frequency band signals.
- Vehicle electronics: Vehicle Bluetooth 、Vehicle Wi Fi devices 、ensuring the stability of short-range wireless communication inside the car.
