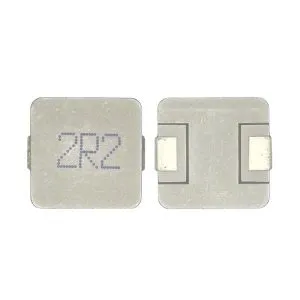

HMD JC Series

HMD JC Series

Product Features

- Low Height, Low DC Resistance (RDC), Ultra-High Current
- Molded magnetic material structure with high-density installation and extremely low noise characteristics
- Suitable for automatic labeling (providing tape packaging)
- Easy to reflow solder to confirm solder joint status

Typical Applications

- High Density DC/DC Converters
- POL Modular Power Supply
- High Current VRM/VRD (Laptop, Server, Desktop CPUs)
- High Speed Charger
- Ultra-thin devices (thickness <1.2mm): ultra-thin laptops, monitors, TVs, tablets, etc.

Description

Include Series

range	Length (mm)	Width (mm)	Height (mm)
4040	4.4±0.3	4.2±0.3	1.8±0.2
5050C	5.7±0.3	5.2±0.3	1.8±0.2
5050D	5.7±0.3	5.2±0.3	2.8±0.2
6060C	7.1±0.3	6.6±0.2	1.8±0.2
6060D	7.1±0.3	6.6±0.2	2.8±0.2
6060F	7.1±0.3	6.6±0.2	4.8±0.2
8080E	8.5±0.5	8.0±0.3	3.8±0.2
1010E	11.0±0.5	10.2±0.3	3.8±0.2
1212F	13.5±0.5	12.7±0.3	4.8±0.2
1212G	13.5±0.5	12.7±0.3	6.1±0.2

Parameter filtering

range	Product Model	Inductance (µH)	Tolerance (%)	DC Resistance DCR (mΩ)	Saturation Current Isat (A)	Temperature rise current Irms (A)
4040	HMD4040R102MJCC0	1	20	27	7	6
4040	HMD4040R152MJCC0	1.5	20	45	6	5
4040	HMD4040R222MJCC0	2.2	20	58	5	4.5
4040	HMD4040R332MJCC0	3.3	20	87	4	3.5
4040	HMD4040R472MJCC0	4.7	20	105	3.5	3
4040	HMD4040R682MJCC0	6.8	20	150	3	2.5
4040	HMD4040R103MJCC0	10	20	200	2.5	2
5050C	HMD5050R102MJCC0	1	20	17	9	8
5050C	HMD5050R152MJCC0	1.5	20	27	8	7
5050C	HMD5050R222MJCC0	2.2	20	34	7	5
5050C	HMD5050R332MJCC0	3.3	20	58	5.5	4.5
5050C	HMD5050R472MJCC0	4.7	20	85	4.5	3.5
5050C	HMD5050R562MJCC0	5.6	20	92	4.2	3
5050C	HMD5050R682MJCC0	6.8	20	120	3.5	2.8
5050C	HMD5050R103MJCC0	10	20	155	3	2.5
5050D	HMD5050R102MJCD0	1	20	14	13	9
5050D	HMD5050R152MJCD0	1.5	20	25	9.5	8
5050D	HMD5050R222MJCD0	2.2	20	29	9	7
5050D	HMD5050R332MJCD0	3.3	20	38	7.5	5.5
5050D	HMD5050R472MJCD0	4.7	20	55	6	4.5
5050D	HMD5050R682MJCD0	6.8	20	70	5	3.5
5050D	HMD5050R103MJCD0	10	20	115	4	3.2
5050D	HMD5050R153MJCD0	15	20	160	3	2.5
5050D	HMD5050R223MJCD0	22	20	250	2.5	1.5
5050D	HMD5050R333MJCD0	33	20	380	2	1.2
5050D	HMD5050R473MJCD0	47	20	435	1.5	1
6060C	HMD6060R102MJCC0	1	20	16	12.5	8.5
6060C	HMD6060R152MJCC0	1.5	20	26	10.5	8
6060C	HMD6060R222MJCC0	2.2	20	35	8.5	7
6060C	HMD6060R332MJCC0	3.3	20	50	7	4.5
6060C	HMD6060R472MJCC0	4.7	20	60	5.5	4
6060C	HMD6060R682MJCC0	6.8	20	95	5	3
6060C	HMD6060R103MJCC0	10	20	120	4	2.5
6060D	HMD6060R102MJCD0	1	20	9.2	15	12
6060D	HMD6060R152MJCD0	1.5	20	12.1	13	11
6060D	HMD6060R222MJCD0	2.2	20	17.5	10	9
6060D	HMD6060R332MJCD0	3.3	20	26	9.5	8.5
6060D	HMD6060R472MJCD0	4.7	20	38	8	6.5
6060D	HMD6060R682MJCD0	6.8	20	50	6.5	5
6060D	HMD6060R103MJCD0	10	20	68	5.5	4.5
6060F	HMD6060R102MJCF0	1	20	6.5	16	12
6060F	HMD6060R152MJCF0	1.5	20	10	13	9.5
6060F	HMD6060R222MJCF0	2.2	20	12.5	12	9
6060F	HMD6060R333MJCF0	3.3	20	22	10	8.5
6060F	HMD6060R682MJCF0	6.8	20	34	8	6
6060F	HMD6060R104MJCF0	100	20	380	1.8	1.2
8080E	HMD8080R102MJCE0	1	20	4.5	18	15
8080E	HMD8080R152MJCE0	1.5	20	6.5	17	12
8080E	HMD8080R222MJCE0	2.2	20	7.5	15	12
8080E	HMD8080R332MJCE0	3.3	20	12	12	10
8080E	HMD8080R472MJCE0	4.7	20	18	11	8
8080E	HMD8080R103MJCE0	10	20	35	9	6
8080E	HMD8080R153MJCE0	15	20	48	7.5	5
8080E	HMD8080R223MJCE0	22	20	82	6.5	4.5
8080E	HMD8080R333MJCE0	33	20	120	4.5	3.5
8080E	HMD8080R473MJCE0	47	20	156	4	2.5
8080E	HMD8080R683MJCE0	68	20	235	3.5	2
1010E	HMD1010R102MJCE0	1	20	3.5	28	19
1010E	HMD1010R152MJCE0	1.5	20	5	24	16
1010E	HMD1010R222MJCE0	2.2	20	7	18	12
1010E	HMD1010R332MJCE0	3.3	20	12	16	11
1010E	HMD1010R472MJCE0	4.7	20	16	14	9
1010E	HMD1010R682MJCE0	6.8	20	25	12	8.5
1010E	HMD1010R103MJCE0	10	20	32	9	7.5
1010E	HMD1010R223MJCE0	22	20	66	6	5
1010E	HMD1010R333MJCE0	33	20	92	5	4.5
1010E	HMD1010R473MJCE0	47	20	145	4	3.5
1010E	HMD1010R683MJCE0	68	20	195	3.5	2.5
1010E	HMD1010R104MJCE0	100	20	320	3	1.8
1212F	HMD1212R102MJCF0	1	20	2.2	35	26
1212F	HMD1212R222MJCF0	2.2	20	5	26	15
1212G	HMD1212R102MJCG5	1	20	1	40	24
1212G	HMD1212R152MJCG5	1.5	20	1.5	30	23
1212G	HMD1212R333MJCG5	3.3	20	6.5	25	18
1212G	HMD1212R683MJCG5	68	20	115	5.5	4.5
1212G	HMD1212R104MJCG5	100	20	135	4	3.5
