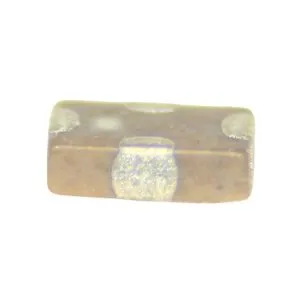

Low-Pass Filter

Product Features

- Accurate frequency band suppression: The cut-off frequency covers 700MHz~3.8GHz, significantly attenuates high-frequency clutter, effectively preserves low-frequency useful signals, avoiding signal distortion.
- Low consumption and high efficiency: low insertion loss、power processing capacity reaching several hundred milliwatts, Satisfying low-power requirements of portable devices 、operating stably with a single power supply.

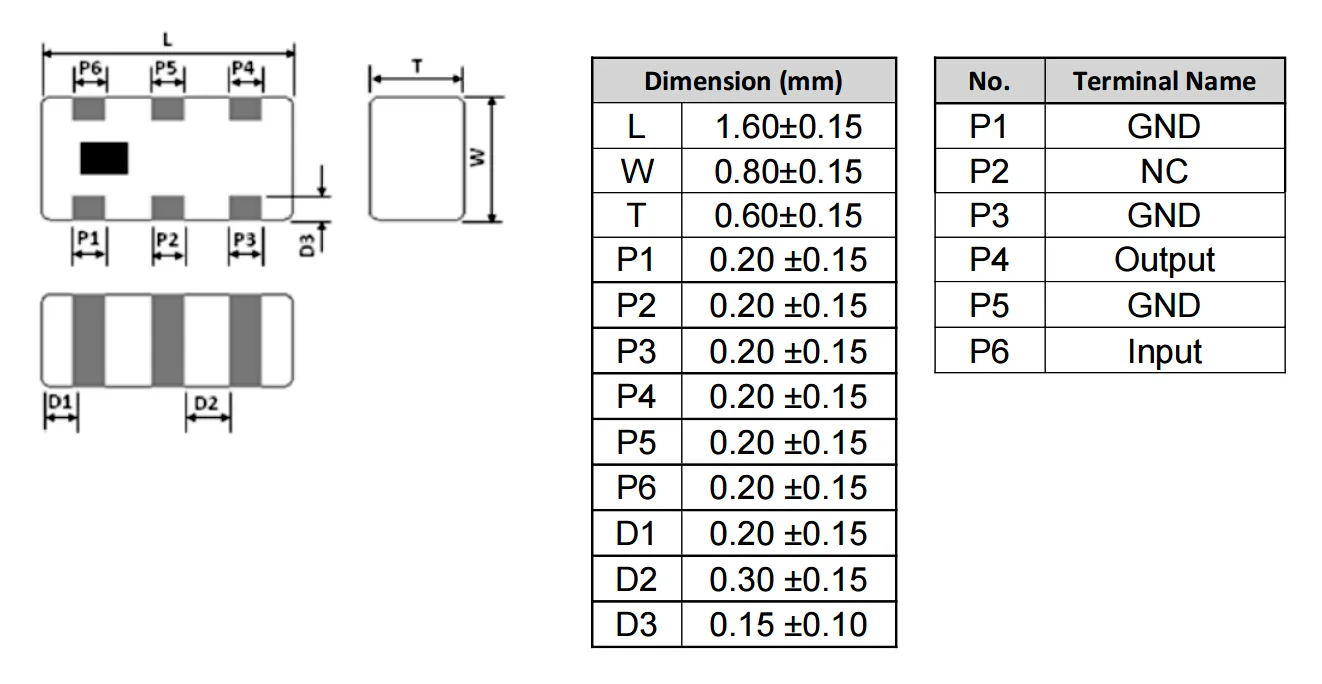

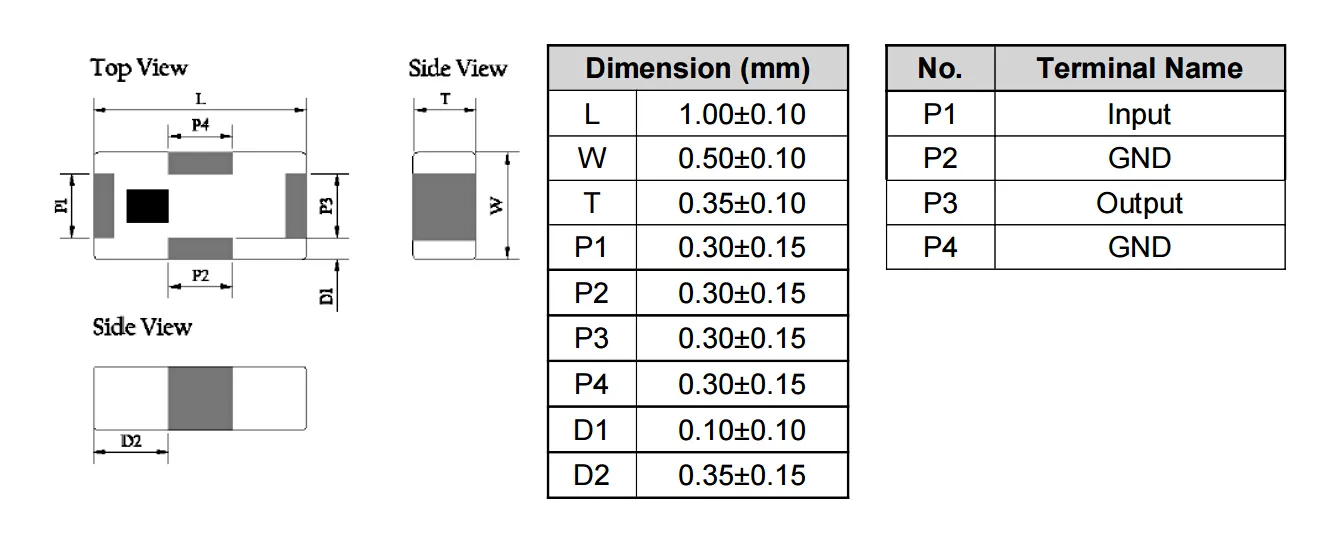

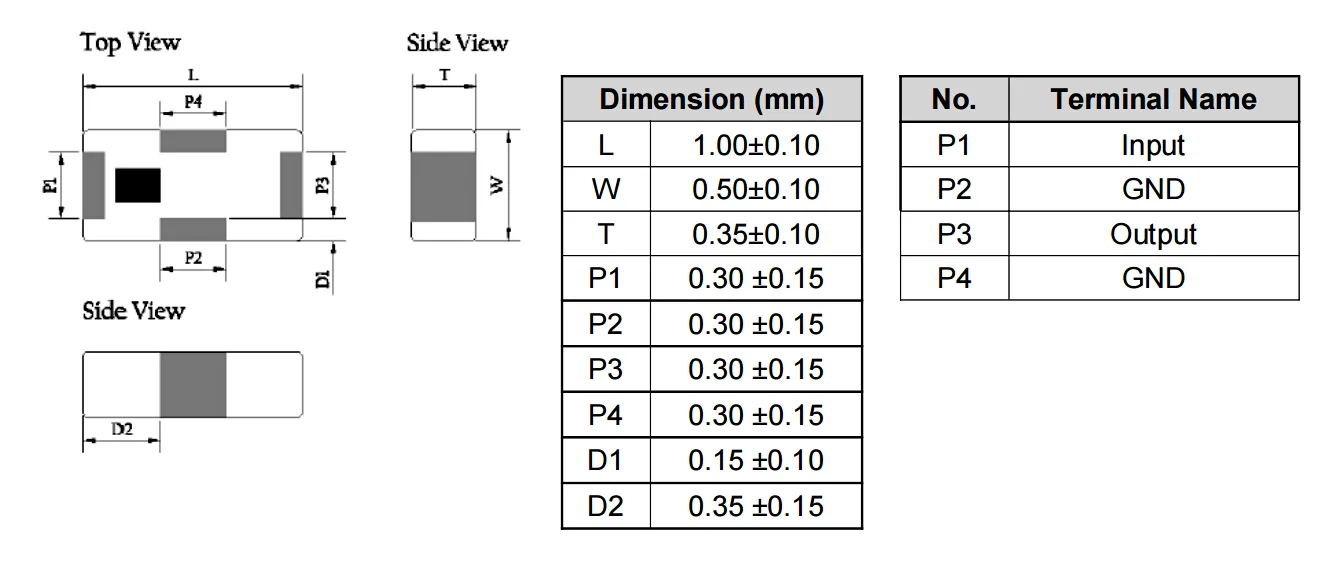

- Flexible packaging: Providing universal surface mount packaging such as 1608 and 2012, minimum size of 1.6 × 0.8mm, Adopting to different device spatial layouts.
- Wide environmental adaptability: operating temperature -40~+85 ℃, temperature resistance, vibration resistance, compatible with industrial and consumer applications.

Typical Applications

- Data communication equipment: routers 、signal conditioning modules for modems, filtering high-frequency interference in RF links.
- Portable electronics: laptops 、signal processing units for wireless headphones, ensuring the purity of audio/data transmission.
- Vehicle electronics: Tire Pressure Monitoring System (TPMS), low-frequency signal filtering for Vehicle navigation, enhancing signal anti-interference ability.
